BackHug Quick Start Guide (Home Edition)

From getting your device out of the box to setting up the app, this guide covers everything you need to know to get started with BackHug.

What You'll Receive

  • 1x BackHug Device
  • 1x Power Cable with Plug

⚠️ IMPORTANT:

  • The BackHug device is heavy (42kg / 92.6 lbs). Ask for help moving it.
  • To avoid damage, do not cut deeper than 1cm into the cardboard box.

These instructions are a simplified version of the full manual.

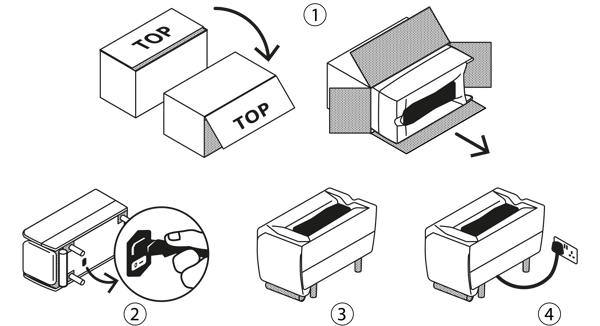

Unbox and Position

Unboxing steps@4x

  1. Turn the box on its side and slide the device out.

  2. While the device is on its side, insert the power cord. Ensure the switch is set to "O" (Off) before plugging it into the wall.

  3. Rest the device on its wooden legs.

  4. Plug it in and flick the switch to "I" (On).

  5. Ensure there is 80cm (31.5") of space behind it for the leg rest to move.



Distance from wall-nearest object@4x

📦 Fold up the box and store it safely in the event of future servicing or returns.





App Setup

1. Download and Create account

  • Download the BackHug app from the App Store or Google Play.

  • Create an account and accept all Bluetooth and Location permissions to make sure the app can find your device.

  • Ensure the toggle in the top-right corner of the screen is set to "AT HOME".

BH user app_Header_Home screen_At Home mode

  • Tap 'Personalise' and take the in-app consultation to build your tailored treatment plan.

Footer - Personalise highlighted in a circle


2. Pair & Connect

  • Tap 'Add a device to your app' on the app home screen.

Main Button - Register device - at Home mode

  • Tap 'Configure Wifi' (in the More menu) to keep your firmware updated and to enable remote diagnostics.

More Menu at Home mode Configure WiFi





The BackHug Experience

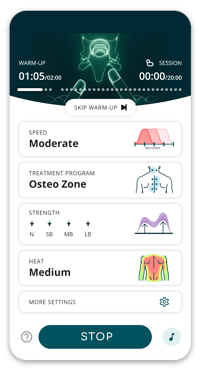

Use your Personalised Treatment Program and/or adjust settings live during your session.

  • Back Length: Match this to your physical height before starting so the device knows exactly where to work.

  • Strength: Start gentle and increase as you relax. Firm (not painful) pressure is best.

  • Speed: Choose "Slow" for deeper pressure or "Fast" for a rhythmic feel (The default is "Moderate").

  • Heat: Turn the heat on to soften muscle tissue.

Settings screen



As the session begins, BackHug will automatically elevate your legs to take pressure off your lower back.

  • Use "Move Up" and "Move Down" on the screen to find your perfect comfort position.

  • 💡Tip: If you are 180cm (5ft 11") or taller, lower the leg rest slightly until you feel "weightless," then hit Confirm.

Zero Gravity Position

2. Check Your Neck Position

As the leg rest rises, robotic fingers will gently tap. You are perfectly aligned when you feel them right at the top of your neck. Shift your body up or down the device if needed.

Correct positioning_Thumbnail

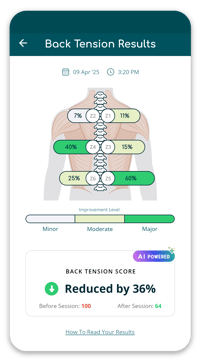

3. Reading Your Results (BTT)

After your session, the screen displays your Back Tension Tracking (BTT) data.

You always start at a baseline of 100. The lower your final score, the better!
Example: A score of 64 means your back tension dropped by 36% during the session.

    Back Tension Results





    Handling Unregistered Devices:

    • If you receive a message indicating that the device is not fully registered or has an incorrect MAC address, copy the MAC address displayed on your screen and note the serial ID number located on the sticker underneath your BackHug device (e.g., GB-12023-3423-XXXXXX-1D).
    • Contact Support: Click the "Contact Support" button and describe the issue in the support form. Our support team will be notified and will work to solve your problem remotely as soon as possible.
